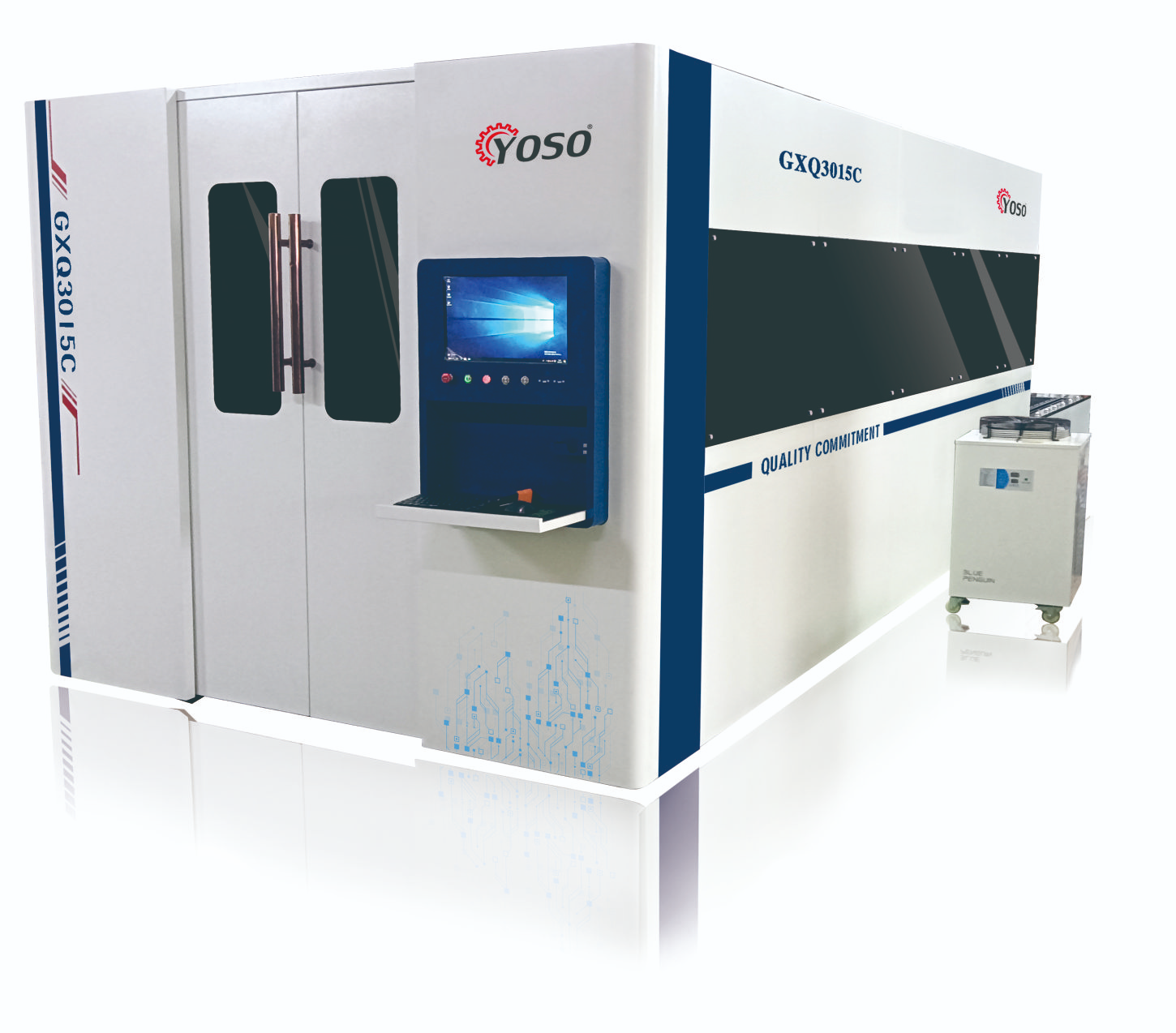

GXQ3015C

      The covered type fiber laser cutting machine adopts heavy pipe-plate welded structure, after entirety annealed then processing with large gantry milling machine tool and drilling all screw holes in one-step, annealing process enables machine frame no deformation to withstand strong impact for long-term ,  all screw holes of the motion system are completed at one time with the high precision milling machine tool, it maximum improves the installation accuracy for motion system. high-strength aluminum alloy welded crossbeam meets the strength needs of the machine and reduces the inertia of the crossbeam when it moves at high speed, further ensured the stability and accuracy of the machine. the enclosed design completely covered the motion area and laser processing area, avoided accidental injuries cause by the high speed moving parts and laser. adopts most matured control system and world top level parts of motion system, the excellent hardwares and software enssured best performance for this machine.

  Optimize the body structure design, machine body adopts heavy raw materials welded, emphasize to machine overall stability, this design & producing ideal fundamentally ensured the quality of the machine body. The anti overflow groove design allows excess lubricating oil to be discharged into the designated area for easy collection, effectively avoiding lubricating oil overflow and pollution.

Normal machine body in market

       Lightweight integrated aluminum profile welded crossbeam improves the control accuracy of mechanical moving parts in the system, reduces the load of motor emergency stop and acceleration, and makes the motor run at high speed more stably for a long time. Compared with screw jointed aluminum crossbeam, the integrated welded aluminum beam has higher reliability, avoiding the problem of deformation caused by impact of screw riveting crossbeam and reducing mechanical failures.
